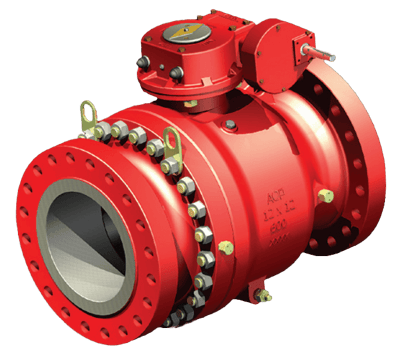

Series D AOP Trunnion Mounted Ball Valve

Brand: Cameron

Cameron’s AOP™ brand offers a wide range of trunnion ball valves. The designs have been developed based on our customers requirements.

When you specify an AOP ball valve, you have selected a premier product.

With our state-of-the-art manufacturing techniques, our valves are manufactured to the highest standards ensuring superior performance.
Features
  • Double Barrier Stem Seals
  • Short Coupled Trunnions to Reduce Unit Bearing Loads and Operating Torque
  • Fixed-position External Stops
  • Stem Separate from the Ball
  • Trunnion Mounted Ball For Ease of Operation at High Pressures
  • NACE MR0175/ISO 15156
  • Fire-tested in Accordance with API 6FA or API 607
  • Plastic Polymer Insert or Elastomer (6" to 12") For Seat Sealing
  • Metal-backed Self-lubricating PTFE Sleeve Bearings and Thrust Washers Reduce Torque and Extend Service Life
  • Bolted Construction Permits Disassembly on Job Site for Repairs
  • Standard Valve Trim is Supplied With Electroless Nickel Coating

Specifications

Brand

Approvals & Certifications

  • API 607 or 6FA, 6D Monogrammed
  • ISO 15156

Ball Material

  • Carbon Steel NACE - ASTM A350 LF2 1MIL ENP, 4130/4140 ENP
  • Stainless Steel NACE - ASTM A351 CF8M

Bearing Material

  • Carbon Steel NACE (ASTM A36 / A350 LF2, A574M) - Bearing Retainer
  • Stainless Steel NACE (ASTM A36/A350 LF2, A564 Typical 630 Stainless Steel)
  • Steel - Stem, Trunnion
  • Teflon - Stem, Trunnion

Bushing Material

  • Carbon Steel NACE (ASTM A53 1MIL ENP) - Gland Bushing

Differential Pressure

  • psig: 0 to 5,500 (kPa: 0 to 37,920, bar: 0 to 379.2) - API 5000

Enclosure, Body Material

  • Carbon Steel NACE (ASTM A216 WCC, A216 Grade WCC / A105, A487 Grade 4) - Tailpiece
  • Stainless Steel NACE (ASTM A216 WCC,A216 Grade WCC/A105, A487 Grade 4)

Flange Material

  • Carbon Steel NACE (ASTM A216 WCC) - Closure-Adapter

Flange Size - 10” (DN 250)

  • 10” (DN 250) - 150# ASME
  • 10” (DN 250) - 1500# ASME
  • 10” (DN 250) - 2500# ASME
  • 10” (DN 250) - 300# ASME
  • 10” (DN 250) - 600# ASME
  • 10” (DN 250) - 900# ASME

Flange Size - 12” (DN 300)

  • 12” (DN 300) - 150# ASME
  • 12” (DN 300) - 1500# ASME
  • 12” (DN 300) - 2500# ASME
  • 12” (DN 300) - 300# ASME
  • 12” (DN 300) - 600# ASME
  • 12” (DN 300) - 900# ASME

Flange Size - 2” (DN 50)

  • 2” (DN 50) - 150# ASME
  • 2” (DN 50) - 1500# ASME
  • 2” (DN 50) - 2500# ASME
  • 2” (DN 50) - 300# ASME
  • 2” (DN 50) - 600# ASME
  • 2” (DN 50) - 900# ASME

Flange Size - 3” (DN 80)

  • 3” (DN 80) - 150# ASME
  • 3” (DN 80) - 1500# ASME
  • 3” (DN 80) - 2500# ASME
  • 3” (DN 80) - 300# ASME
  • 3” (DN 80) - 600# ASME
  • 3” (DN 80) - 900# ASME

Flange Size - 4” (DN 100)

  • 4” (DN 100) - 150# ASME
  • 4” (DN 100) - 1500# ASME
  • 4” (DN 100) - 2500# ASME
  • 4” (DN 100) - 300# ASME
  • 4” (DN 100) - 600# ASME
  • 4” (DN 100) - 900# ASME

Flange Size - 6” (DN 150)

  • 6” (DN 150) - 150# ASME
  • 6” (DN 150) - 1500# ASME
  • 6” (DN 150) - 2500# ASME
  • 6” (DN 150) - 300# ASME
  • 6” (DN 150) - 600# ASME
  • 6” (DN 150) - 900# ASME

Flange Size - 8” (DN 200)

  • 8” (DN 200) - 150# ASME
  • 8” (DN 200) - 1500# ASME
  • 8” (DN 200) - 2500# ASME
  • 8” (DN 200) - 300# ASME
  • 8” (DN 200) - 600# ASME
  • 8” (DN 200) - 900# ASME

Gland Material

  • Carbon Steel NACE (ASTM A350 LF2)
  • Stainless Steel NACE (ASTM 350 LF2) - Gland Plate

Materials of Construction

  • Carbon Steel NACE (ASTM 4140 1MIL ENP, AISI 1018 / AISI 4140, 4130 / 4140 ENP) - Lower Trunnion, Vent/Drain Fitting, Body Injection Fitting
  • Stainless Steel NACE (ASTM A351 CF8M / A564-630, ASTM A182 316 / A564-630) - Lower Trunnion, Vent/Drain Fitting, Body Injection Fitting
  • Steel - Upper Thrust Washer, Lower Thrust Washer
  • Teflon - Upper Thrust Washer, Lower Thrust Washer

NACE & NIST

  • NACE MR-0175

Nut & Bolt Material

  • Carbon Steel NACE (ASTM A194 2H, ASTM A193 B7, A194 Grade 2HM Zinc Plate) - Body Stud Nut
  • Stainless Steel NACE (ASTM A194 2H, A194 Grade 2HM Zinc Plate) - Body Stud Nut

O-Ring Material

  • FKM - Stem, Body/Tailpiece, Seat, Trunnion
  • Fluorocarbon Elastomer - Closure, Stem, Seat Gasket, Gland Plate, Trunnion O-Ring
  • HNBR - Stem, Body/Tailpiece, Seat, Trunnion
  • Polyketone

Operating Pressure

  • psig: 285 to 2,200 (kPa: 1,965 to 15,170, bar: 19.7 to 151.7)

Operating Temperature

  • -46° to 175° C (-50° to 350° F)

Ring Material

  • Carbon Steel NACE (ASTM A350 LF2 1IML ENP w/ insert, 4130)
  • Nylon - Gland Plate Backup, Stem Backup, Lower Trunnion Backup, Closure Backup
  • Stainless Steel NACE (ASTM A351 CF8M w/ insert, A564 Typical 630 Stainless Steel) - Seat Ring

Screw Material

  • Carbon Steel NACE (A574M) - Gland Plate, Lower Trunnion, Adapter Plate Capscrews
  • Stainless Steel NACE (A574M) - Gland Plate, Lower Trunnion, Adapter Plate Capscrews

Seat / Seal Material

  • Seal: Graphoil (Lower Trunnion Fire, Closure Fire, Gland Plate Fire, Stem Fire)
  • Seal: Nylon (Seat Face, Stem)
  • Seal: Polyketone (Seat Face, Stem)
  • seat: Devlon
  • Seat: Fluoroelastomer
  • Seat: PEEK
  • Seat: Teflon

Spring Material

  • Inconel X-750
  • Stainless Steel

Stem Material

  • Carbon Steel NACE (AISI 4140, AISI 1045 / AISI 4140, 4130 / 4140 ENP) - Drive Pins, Stem Key
  • Stainless Steel NACE (ASTM A564-630, AISI 1045 / AISI 4140, A564 Typical 630 Stainless Steel ENP, NACE) - Drive Pins, Key

Temperature Range

  • -46° to 177° C (-50° to 350° F)

Torque

  • 1,099 to 38,032 In/Lbs
