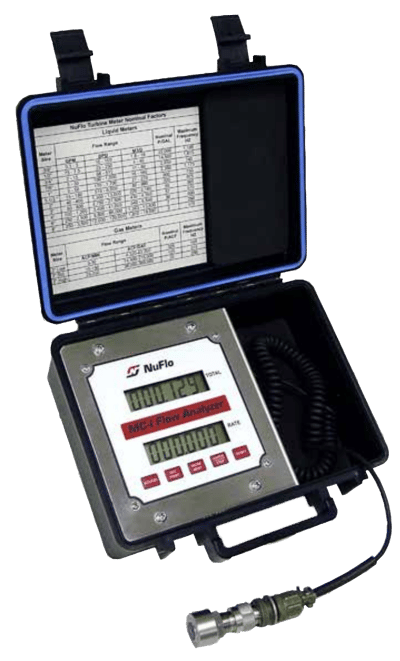

NUFLO MC-I Portable Rate Meter
Brand: CameronCameron’s NUFLO MC-I Portable Rate Meter is a portable liquid and gas measurement device that provides a continuous display of flow rate and total volume.
Packaged in a compact carrying case with a handle, the instrument is easily transported from one field location to another for verifying turbine meter operation.
The MC-I Portable Rate Meter is accurate, easy to use, and compatible with NUFLO turbine flow meters of all sizes. An LCD screen simultaneously displays volume and flow rate in a variety of commonly used engineering units.
Volume is displayed on the top line of the readout and the operator selects the decimal point position during calibration.
Flow rate is displayed on the bottom line of the readout, and the decimal point position is automatically set in accordance with flow rate to provide maximum resolution as flow rates change.
The MC-I Portable Rate Meter is easily configured for liquid or gas measurement using the five-button keypad.
For liquid, a user enters the calibration factor of the flow meter and selects the desired units for volume and flow rate. For gas, a user enters a manually calculated divisor and selects a desired time base for rate.
Specifications
Brand
Display
- Six digits for total
- Six digits for rate
- Character height - 0.5”
- Updates every four seconds
- Units of measurement: Volume: BBL, GAL, M3, and Liter; Flow Rate: BPD, GPM, M3/D, and Liters/Min or per day, hour, minute or second
Turbine Meter Input
- Signal generated via a magnetic pickup
- Amplitude range: 30 - 3000 mV P-P
- Frequency range: 0 - 2000 Hz
- Accuracy of volume measurement: ± 1 count
Power Supply
- Alkaline battery pack (three C-size batteries) supplied by Cameron
- Typically one year life, when stored at the recommended operating temperature
Case
- Black ABS plastic provides weatherproof protection when the lid is closed and latched
- 8⅞” x 7⅞” and 3-7/16” tall (including hinge and handle)
Environmental
- Storage temperature: 20°F to 130°F (-7°C to 55°C)
- Operating temperature: 0°F to 130°F (-18°C to 55°C)
- Humidity: 0 - 90% non-condensing
Hazardous Area Classification
- Intrinsically safe
- Class I, Division 1, Groups A, B, C, D
