Images are representations only.

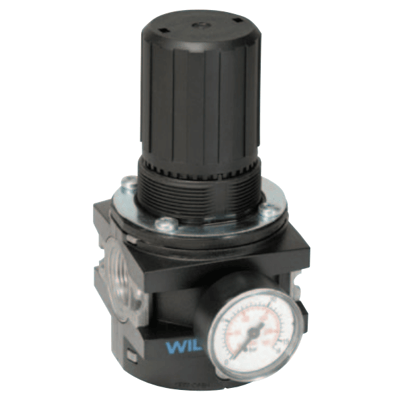

R90 Series Regulator
Brand: Wilkerson CorporationSpecifications
- Integral 3/4" or 1" ports (BSPP & NPT)
- Robust but lightweight aluminum construction
- Secondary pressure ranges 12 and 16 bar
- Rolling diaphragm for extended life
- Secondary aspiration plus rolling diaphragm provides quick response and accurate pressure regulation
- Optional tamperproof regulator padlock
- Reverse flow / relieving option
- Low temperature -40°
Specifications
Flow Capacity (All Models)
- 380 scfm
Maximum Supply Pressure (All Models)
- 254 psig (17.5 bar)
Operating Temperature
- 3/4" 12 bar relieving: -40° to 140° F (-40° to 60° C)
- 3/4" 12 bar relieving + Pressure Gauge: 14° to 140° F (-10° to 60° C)
- 1" 12 bar relieving: -40° to 140° F (-40° to 60° C)
- 1" 12 bar relieving + Pressure Gauge: 14° to 140° F (-10° to 60° C)
Height x Width x Depth
- 7.2 x 3.5 x 3.7 in (182 x 90 x 94 mm)
Weight
- 3/4" 12 bar relieving: 2.4 lb (1.08 kg)
- 3/4" 12 bar relieving + Pressure gauge: 2.5 lb (1.13 kg)
- 1" 12 bar relieving: 2.4 lb (1.08 kg)
- 1" 12 bar relieving + Pressure Gauge: 2.6 lb (1.19 kg)
