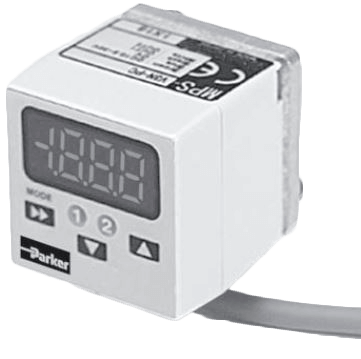

MPS-32 2-Color Panel Mount Pressure Sensor
Brand: Wilkerson Corporation
Specifications
- Pressure Ranges:
- Vacuum Pressure 0 to -30 inHg
- Positive Pressure 0 to 145 PSI
- Sensor Output:
- 2 NPN or PNP Open Collector
- Transistor Output, 30VDC, 125mA
- Optional Analog Output, 4 to 20mA
- Optional Analog Output, 1 to 5VDC
- Switch Point and Window Comparator Mode
- 4 Selectable Units of Measure
- (mmHg, -bar, -kPa, inHg)
- (kgf/cm2, PSI, bar, kPa)
- Output Response Time Less Than 2.0 Milliseconds
- RoHS
- Air and Non-Corrosive Gases
- Error Message
Specifications
Brand
Pressure Range
- 0 to -30 inHg
- 0 to 145 psi
Port Size
- 1/8” NPSF
Output Circuit
- PNP Sourcing with 1-5 Vdc
- PNP Sourcing with 4-20 mA
- NPN Sinking
- PNP Sourcing
Media
- Air & Non-Corrosive Gases
Operating Temperature
- 32° to 122° F (0° to 50° C)
Storage Temperature
- 14° to 140° F (-10° to 60° C)
Humidity
- 35 to 85 % Relative Humidity
Electrical Connection
- 4-Pin, M8 Connector, Grommet Open Lead
Power Supply
- 12-24 Vdc +10 % or Less, Ripple (Vp-p) 10 % or Less
Display
- 3 + 1/2 Digit, 2 Color, 7-Segment LED
Repeatability
- ± 0.2 % of Full Scale, ± 1 Digit or Less, ± 03 % of Full Scale, ± 1 Digit or Less
Environmental Protection
- IP50
Current Consumption
- < 80 mA
Material of Construction
- Pressure Port: Zinc Die Cast
- Housing: ABS (Gray)
- Diaphragm: Silicone
Mass
- 1.7 oz. (45 g) (Not including cable)
