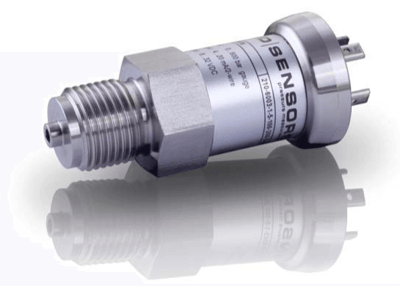

DMP 335 Pressure Transmitter
Brand: BD SensorsThe industrial pressure transmitter DMP 335 is based on a stainless steel welded pressure sensor without fluid.
This characteristic has a special advantage with applications where silicone oil or elastomeric seals cannot be used.
Features- Suitable for oxygen applications
- Insensitive to pressure peaks
- High overpressure capability
Specifications
Brand
Approvals & Certifications
- CE-Conformity
- EMC: Emission & Immunity According to EN 61326, 2014/30/EU
- IBExU 10-ATEX-1068 x for DMP 335, 2014/34/EU
- IECEx IBE 12.0027X for DMP 335
- PED: 2014/68/EU (Module A)
- REACH
- RoHS
- TÜV NORD
- UL (C,US)
BSP Connection
- G 1/2” Male (EN 837)
- G 1/4” Male (EN 837)
Diaphragm Material
- 630 Stainless Steel (17-4 PH)
Enclosure, Body Material
- 316L Stainless Steel, 1.4401
- Cable Gland Brass
- Nickel-Plated Steel
Environmental Protection
- IP65
- IP67
- IP68
NPT Connection
- 1/4” NPT Male
Output
- 0-10 V, 3-Wire
- 4-20 mA, 2-Wire
Pressure Range
- bar: 6 to 600
- kPa: 600 to 60,000
- psi: 87.02 to 8,702
Pressure Type
- Gauge
- Mechanical And Plant Engineering
- Energy Industry
- Refrigeration Engineering
- Medical Technolgy
- Utility Vehicles / Mobile Hydraulics
- Packaging And Paper Industry
