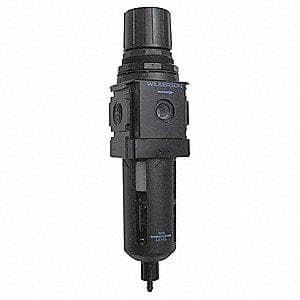

B90 Series Filter/Regulator
Brand: Wilkerson CorporationSpecifications
- Integral 3/4" or 1" ports (BSPP or NPT)
- High efficiency element as standard
- Excellent water removal efficiency
- Robust but lightweight aluminum construction
- Secondary pressure ranges 12 and 16 bar
- Rolling diaphragm for extended life
- Secondary aspiration plus balanced poppet provides quick response and accurate pressure regulation
- Reverse flow / relieving option
- Low temperature - 40 deg; with combined manual /semi-auto drain as standard
Specifications
Flow Capacity (All Models)
- 3/4”: 335 scfm
- 1”: 465 scfm
Maximum Supply Pressure (All Models)
- 254 psig (17.5 bar)
Operating Temperature (All Models)
- 14° to 140° F (-10° to 60° C)
Bowl Capacity (All Models)
- 130 cm³ (4.4 oz.)
Height x Width x Depth
- 3.5 x 3.5 x 3.7 in (345 x 90 x 94 mm)
Weight
- 3.3 lb (1.5 kg)
