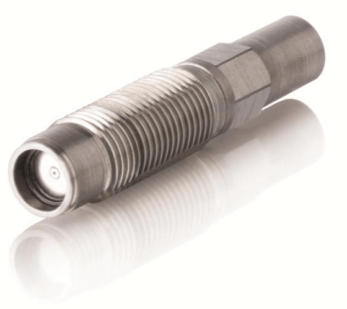

DAC 106 K Piezoelectric Pressure Sensor

Brand: BD Sensors

The sensor was developed for dynamic and quasistatic pressure detection psi: 0 to 4,351 (kPa: 0 to 30,000, bar: 0 to 300).

The sensor element with Crystal Match technology enables exceptional signal detection across the entire temperature range.

The monocrystalline GaPO₄ sensor element allows constant sensitivity and thus ensures excellent performance.

Thanks to its size (M5x0.5 thread) and its temperature resistance 0° to 400° C (0° to 752° F), the sensor is suitable for a broad range of applications.
Features
  • Compact Construction
  • Extended Pressure Range
  • High temperature resistance 400° C (752° F)
  • High natural frequency
  • Constant sensitivity across the entire service life

Specifications

Approvals & Certifications

  • TÜV NORD

Enclosure, Body Material

  • Stainless Steel

Metric Connection

  • M5 x 0.5

Pressure Range

  • bar: 0 to 300
  • kPa: 0 to 30,000
  • psi: 0 to 4,350

  • Mechanical and Plant Engineering
  • Hydraulics
  • Laboratory
