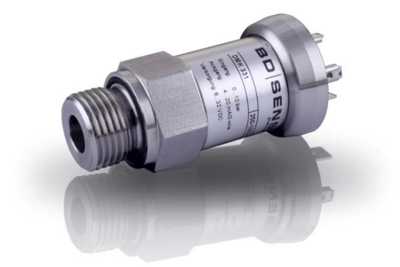

DMK 331 Pressure Transmitter
Brand: BD SensorsThe industrial pressure transmitter DMK 331 with ceramic sensor has been especially designed for pasty, polluted or aggressive media and for oxygen applications at low pressure range.
As with all industrial pressure transmitters made by BD Sensors, you may choose between various electrical and mechanical connections also on DMK 331.
Features- Nominal pressure: 0 ... 400 mbar up to 0 ... 600 bar
- Accuracy: 0.5 % FSO
- Pressure port G 1/2" flush for pasty and polluted media
- Pressure port G 1/2" open port PVDF for aggressive media
- Oxygen application
Specifications
Brand
Approvals & Certifications
- CE-Conformity
- EMC: Emission & Immunity According to EN 61326, 2014/30/EU
- IBExU 10-ATEX-1068 x for DX19-DMK 331, 2014/34/EU
- IECEx IBE 12.0027X for DX19-DMK 331, IEC 61508, 61511, 60770
- REACH
- RoHS
- TÜV NORD
- UL (C,US)
BSP Connection
- G 1/2” Male
- G 1/4” Male
Diaphragm Material
- Ceramics Al₂O₃ 96 %
Enclosure, Body Material
- 303 Stainless Steel
- 316L Stainless Steel
Environmental Protection
- IP65
- IP67
- IP68
NPT Connection
- 1/2” NPT Male
- 1/4” NPT Male
Output
- 0-10 V, 3-Wire
- 0-20 mA, 3-Wire
- 4-20 mA, 2-Wire
Pressure Range
- bar: -1 to 600
- kPa: -100 to 60,000
- psi: -14.5 to 8,702
Pressure Type
- Absolute
- Gauge
- Vacuum
- Mechanical and Plant Engineering
- Energy Industry
- Medical Technology
- Environmental Industry
