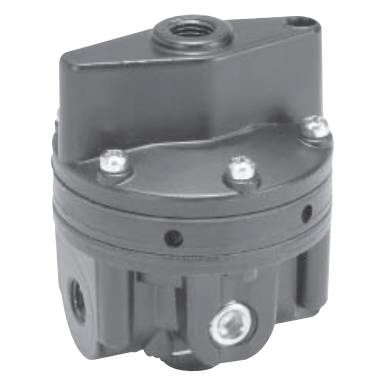

WBA208 Series Precision Pneumatic Input Signal Amplifier
Brand: Wilkerson CorporationSpecifications
- The WBA208 uses a pneumatic input signal to accurately control output pressure based on a predetermined ratio.
- A balanced Supply Valve minimizes the effects of supply pressure variation.
- An Aspirator Tube compensates downstream pressure droop under flowing conditions.
- Optional Adjustable By-Pass Needle Valve allows tuning for optimum dynamic response (1:1 ratio only).
- Optional Fixed Negative Bias allows operation with pneumatic devices that cannot be adjusted to zero input pressure.
- A separate Control Chamber isolates the diaphragm from the main flow to eliminate hunting and buzzing.
- Unit construction allows servicing without removal.
- Mounting Bracket available.
Specifications
Maximum Output Pressure, psig (bar)
- 150 (10.0)
Maximum Supply Pressure, psig (bar)
- 250 (17.0)
Flow Capacity SCFM, (m3/HR)
- 45 (76.5)
Exhaust Capacity SCFM, (m3/HR)
- 11 (18.7)
Sensitivity (Water Column)
- 1:1:.250” (.64 cm)
- 1:2:.500” (1.27 cm)
- 1:3:.750” (1.9 cm)
Ratio Accuracy
- 1.0
Supply Pressure Effect, psig (bar)
- 1:1:0.10 (.007)
- 1:2:0.20 (.014)
- 1:3:0.30 (.021)
Ambient Temperature °F (°C)
- -40° to +200° (-40° to +93)
