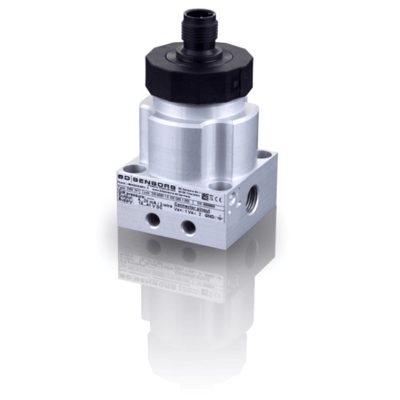

BD Sensors Differential Pressure Transmitter, DMD 341
Images are representations only.

DMD 341 Differential Pressure Transmitter

Brand: BD Sensors
Request Information
Favorite

The DMD 341 is a differential pressure transmitter for non-aggressive gases and compressed air.

Because of its compact and robust Aluminum housing it is particularly suited for machine and plant engineering.

Basic element of the DMD 341 is a piezoresistive stainless steel silicon sensor, which features high accuracy and excellent long term stability.
Features
  • Differential pressure 0 ... 6 mbar up to 0 ... 1000 mbar
  • Accuracy: 0.35 % / 1% / 2% FSO
  • piezoresistive silicon sensor
  • Compact and robust aluminum housing
  • Suited for non-aggressive gases and compressed air
  • Current and voltage output signals in 2- and 3-wire systems
  • Excellent long term stability

Specifications

Brand

Approvals & Certifications

  • CE
  • EMC: Emission & Immunity According to EN 61326, 2004/108/EC
  • IEC 60770
  • REACH
  • RoHS
  • TÜV NORD
  • UL (C,US)

BSP Connection

  • G 1/8” Female

Enclosure, Body Material

  • Aluminum
  • Silver Anodised

Environmental Protection

  • IP65
  • IP67

Output

  • 0-10 V, 3-Wire
  • 0-20 mA, 3-Wire
  • 4-20 mA, 2-Wire

Pressure Range

  • kPa: 0 to 100
  • mbar: 0 to 1,000
  • psi: 0 to 14.5

Pressure Type

  • Differential
  • Gauge

  • Mechanical and Plant Engineering
  • HVAC
