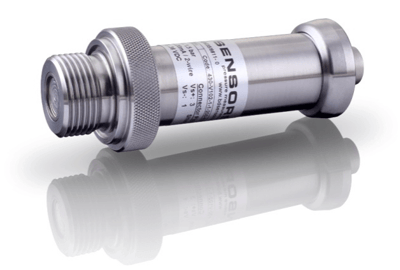

LMP 331i Screw in Transmitter

Brand: BD Sensors
Request Information
Favorite

The precision screw-in transmitter LMP 331i demonstrate the further development of our industrial pressure transmitters.

The signal processing of sensor signal is done by digital electronics with 16-bit Analog digital converter.

Consequently it is possible to conduct an active compensation and the transmitters with excellent measurements and exceptionally attractive price to offer on the market.
Features
  • Turn-down 1:10
  • Communication interface for adjusting of offset, span and damping

Specifications

Brand

Approvals & Certifications

  • CE
  • EMC: Emission & Immunity According to EN 61326, 2014/30/EU
  • IBExU 10-ATEX-1068 x for DX19-LMP 331i, 2014/34/EU
  • IECEx IBE 12.0027X for DX19-LMP 331i
  • REACH
  • RoHS
  • TÜV NORD

BSP Connection

  • G 3/4” Male

Diaphragm Material

  • 316L Stainless Steel

Enclosure, Body Material

  • 316L Stainless Steel

Environmental Protection

  • IP65
  • IP67
  • IP68

Output

  • 0-10 V, 3-Wire
  • 4-20 mA, 2-Wire

Pressure Range

  • bar: 0.39 to 39.23
  • kPa: 39.23 to 3,923
  • meters WC: 4 to 400
  • psi: 5.68 to 568.9

  • Chemical Industry
  • Environmental Industry
