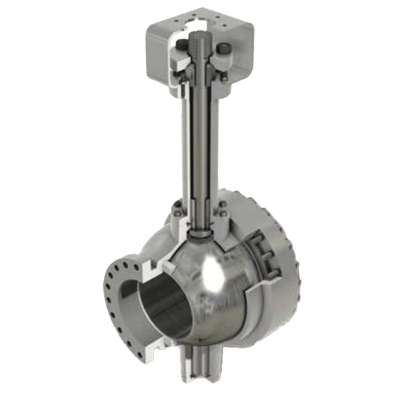

TBV Series 21/80 Cryogenic Ball Valve
Brand: CameronCameron is a leading provider of valves, valve automation, and measurement systems to the oil and gas industry.
Its products are used primarily to control, direct, and measure the flow of oil and gas as it is moved from individual wellheads through flowlines, gathering lines, and transmission systems to refineries, petrochemical plants, and industrial centers for processing.
Cameron provides critical service valves for refinery, chemical, and petrochemical processing businesses, and for associated storage terminal applications, particularly through its ORBIT and GENERAL VALVE product lines.
These brands are complimented by WKM® and TBV™ valve products, and considerably expand the scope of Cameron’s product offerings.
Specifications
Brand
Approvals & Certifications
- API 607 - Fire Tested
- Cryogenic Testing: BSI BS 6364, Bechtel 3PC-PV00-F0001 & Chevron Low-Temperature & Cryo-Service
- FE (Fugitive Emissions) Test: ISO 15848
Ball Material
- 304 Stainless Steel
- 304L Stainless Steel
- 316 Stainless Steel
- 316L Stainless Steel
- 317 Stainless Steel
- 630 Stainless Steel
- Brass
- Inconel
- Nitronic 50
Configuration
- Floating Ball
Enclosure Finish
- Chrome-Carbide Coating
- Electro-Polishing
- Tungsten-Carbide Coating
Enclosure, Body Material
- 304 Stainless Steel
- 304L Stainless Steel
- 316 Stainless Steel
- 316L Stainless Steel
- 317 Stainless Steel
- 630 Stainless Steel
- Brass
- Inconel
- Nitronic 50
End Connection
- Flanged - Raised Face (RF)
Flange Size - 10” (DN 250)
- 10” (DN 250) - 150# ASME
- 10” (DN 250) - 300# ASME
- 10” (DN 250) - 600# ASME
Flange Size - 12” (DN 300)
- 12” (DN 300) - 150# ASME
- 12” (DN 300) - 300# ASME
- 12” (DN 300) - 600# ASME
Flange Size - 14” (DN 350)
- 14” (DN 350) - 150# ASME
- 14” (DN 350) - 300# ASME
- 14” (DN 350) - 600# ASME
Flange Size - 16” (DN 400)
- 16” (DN 400) - 150# ASME
- 16” (DN 400) - 300# ASME
- 16” (DN 400) - 600# ASME
Flange Size - 18” (DN 450)
- 18” (DN 450) - 150# ASME
- 18” (DN 450) - 300# ASME
- 18” (DN 450) - 600# ASME
Gasket Material
- Spiral-Wound Body Gasket: Hastelloy C Grafoil
Handle Assembly Material
- Stainless Steel - Locking Oval Handle, Oval Handle
Operation
- 180° Operation (Diverter Valve)
- 90° Operation (Diverter Valve)
Port
- Full
Relief
- Cavity Pressure Relieving Seats
- Self-Relieving
- Upstream End Plate Slot
Seat / Seal Material
- Cryofil
- CTFE
- Graphite
- JLON
- Metal
- PTFE
- Spiral-Wound Body Seal: 316 Stainless Steel
- Spiral-Wound Body Seal: Grafoil
- Spiral-Wound Body Seal: TFE
- Ultrafil
Stem Material
- 304 Stainless Steel
- 304L Stainless Steel
- 316 Stainless Steel
- 316L Stainless Steel
- 317 Stainless Steel
- 630 Stainless Steel
- Brass
- Inconel
- Nitronic 50 HS
Temperature Range
- -269° to 121° C (-452° to 250° F)
Valve Type
- Manual
Size
- 10” to 18” (250 to 450 mm)
- Aerospace Equipment
- Air Separation
- Cold Service Applications
- FLNG (Floating LNG) Production
- Food Freezing
- High-Purity Gases for Semiconductor Applications
- Liquefaction (Export Terminals)
- Liquefied Petroleum Gas (LPG)
- Pharmaceutical (Blanketing, PH Control, Pipe Freezing, Process Chilling, Water Treatment & Shrink Fitting)
- Pipelines & Refueling
- Transport (Trucking, Marine, Rail)
