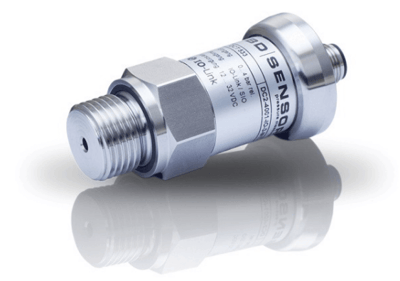

DCT 533 Pressure Transmitter
Brand: BD SensorsIO-Link is a digital interface for sensors and actuators, which is worldwide standardized by IEC 61131-9.
IO-Link does not have a bus topology, but it is a powerful point-to-point communication, where the device can be parametrized and the measured values transferred.
The integration to the master is easy by using the IODD-file.
The sensor technology of the DCT 533 is the same as those of the proven pressure transmitter DMP 331 / DMP 333, whereby the DCT 533 is suitable for almost every industrial application, if medium is compatible with stainless steel 316L.
The modular concept of the pressure transmitter allows customized electrical or mechanical connections, so it is easy to adapt the DCT 533 to different conditions on-site.
Features- Nominal pressure from psi: 0 to 5,801.2 (kPa: 0 to 40,000, bar: 0 to 400)
- IO-Link according to specification V 1.1
- Data transfer 38.4 kBaud
- Smart sensor profile
- Perfect thermal behavior
- Excellent long term stability
Specifications
Brand
Approvals & Certifications
- CE-Conformity
- EMC: Emission & Immunity According to EN 61326, 2014/30/EU
- IEC 61131-9, 60770
- PED: 2014/68/EU
- REACH
- RoHS
- TÜV NORD
- UL (C,US)
BSP Connection
- G 1/2” Male (DIN 3852, EN 837)
- G 1/4” Male (DIN 3852, EN 837)
Diaphragm Material
- 316L Stainless Steel, 1.4435
Enclosure, Body Material
- 316L Stainless Steel, 1.4401
Environmental Protection
- IP67
- IP68
NPT Connection
- 1/2” NPT Male
- 1/4” NPT Male
Pressure Range
- bar: 0 to 400
- kPa: 0 to 40,000
- psi: 0 to 5,800
Pressure Type
- Absolute
- Gauge
