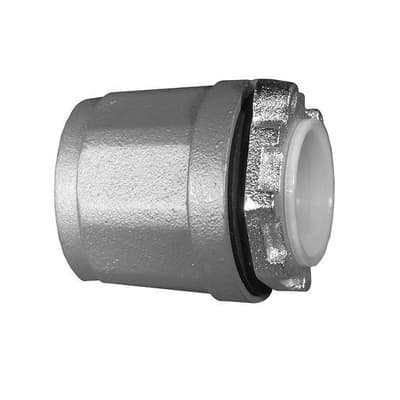

Appleton™ Threaded Conduit Hubs

Brand: Appleton

Appleton™ HUB threaded conduit hubs are general purpose fittings designed for RMC and IMC.

They provide a more vibration resistant connection with assured ground continuity.

The HUB design is an insulated throat form with a bonding screw.

The o-ring provides a watertight connection between the hub and an enclosure.
Features
  • Female bushed nipple type
  • Female thread for rigid conduit and IMC
  • Takes less space
  • Recessed O-ring seal outside the box provides a watertight threaded hub on enclosures
  • Suitable for use with service entrance conduit

Specifications

NEC/CEC Certifications & Compliances

  • UL Standard: ANSI/UL 514B
  • UL Listed: E-11853
  • CSA Standard: C22.2 No. 18
  • CSA Certified: 009795
  • UL Listed as Suitable for Use in Wet Locations
  • NEMA: FB-1,  NEMA: 4,  NEMA: 12
  • Suitable for Use In: Class I, Div. 2, Class III, Divisions 1 And, 2 Per NEC 501-4(B), 501.10(B)(4), 502-4(A)(2), 503-3(A)

Standard Materials & Finishes

  • Neopreone Gasket
  • Zinc Electro-Plated Ductile Iron
