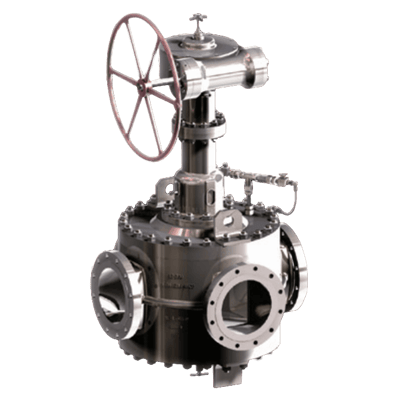

General Valve Four-Way Diverter Valve

Brand: Cameron

Cameron’s GENERAL VALVE® Four-way Diverter Valve does not rely on line pressure or external hydraulic pressure for positive sealing.

The seating elements, or slips, move perpendicularly against the face of the ports. The seals themselves are highly resilient elastomers which are either bonded or mechanically retained in the slips.

Retraction of the slips, away from the body prior to cycling, prevents friction and abrasion, which can damage seals. There is never any sliding or rubbing of the seals against the valve body or ports.

Metal-to-metal secondary seating prevents over-compression of the resilient primary seal. Mechanical retraction and compression ensures no-leak stream separation and longer life.

Specifications

Brand

Applications

  • Airport Fueling Systems
  • Custody Transfer
  • Refining
  • Transmission & Storage

Approvals & Certifications

  • ISO
  • UL for Hazardous Locations (Motor & Control Panel)

Bonnet Material

  • Cast Carbon Steel ASTM A216-WCB - Bonnet/Lower Plate

Enclosure, Body Material

  • Cast Carbon Steel ASTM A216-WCB Chrome-Plated

Flange Size - 10” (DN 250)

  • 10” (DN 250) - 300# ASME
  • 10” (DN 250) - 600# ASME
  • 10” (DN 250) - 900# ASME

Flange Size - 12” (DN 300)

  • 12” (DN 300) - 150# ASME
  • 12” (DN 300) - 300# ASME
  • 12” (DN 300) - 600# ASME

Flange Size - 16” (DN 400)

  • 16” (DN 400) - 150# ASME
  • 16” (DN 400) - 300# ASME
  • 16” (DN 400) - 600# ASME

Flange Size - 2” (DN 50)

  • 2” (DN 50) - 300# ASME
  • 2” (DN 50) - 600# ASME

Flange Size - 20” (DN 500)

  • 20” (DN 500) - 150# ASME
  • 20” (DN 500) - 300# ASME

Flange Size - 3” (DN 80)

  • 3” (DN 80) - 300# ASME
  • 3” (DN 80) - 600# ASME
  • 3” (DN 80) - 900# ASME

Flange Size - 4” (DN 100)

  • 4” (DN 100) - 300# ASME
  • 4” (DN 100) - 600# ASME
  • 4” (DN 100) - 900# ASME

Flange Size - 6” (DN 150)

  • 6” (DN 150) - 300# ASME
  • 6” (DN 150) - 600# ASME
  • 6” (DN 150) - 900# ASME

Flange Size - 8” (DN 200)

  • 8” (DN 200) - 300# ASME
  • 8” (DN 200) - 600# ASME
  • 8” (DN 200) - 900# ASME

Flow Rate

  • 300 to 11,500 Cv

Materials of Construction

  • Cast Ductile Iron ASTM A536-80-55-06 - Slips

O-Ring Material

  • Viton

Operating Time

  • 5 to 12 seconds - Total Time

Packing Material

  • Graphite

Plug Material

  • Cast Carbon Steel ASTM A216-WCB Chrome-Plated

Pressure Range

  • psi: 0 to 1,700 (kPa: 0 to 11,720, bar: 0 to 117.2)

Supply Voltage

  • 12 Vdc - Gear Operator

Torque

  • 20 to 1,700 In/Lbs
