Images are representations only.

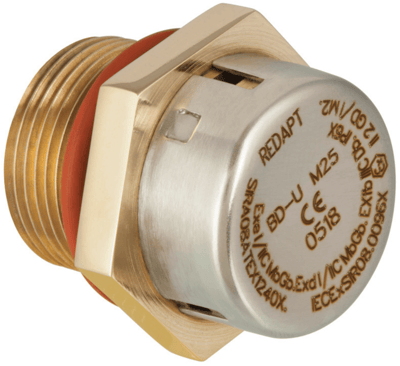

BD-U Series Flameproof (Exde) Breather Drain
Brand: Eaton CorporationRedapt BD-U series of Exd “Flameproof” and Exe “Increased Safety” breather drains has a primary function of effectively draining any water present within the enclosure.
Alongside draining water, it also allows air in the enclosure to breathe with the surrounding atmosphere, minimizing moisture build-up; preventing condensation and potential damage to sensitive electric/electronic equipment housed within.
Approved to the latest international standards, Redapt explosion-proof breather drains can be supplied with ATEX and IECEx hazardous area certificates.
Features- International Ex approvals
- IP66
- Available in brass and stainless steel
- Metric and NPT threads available
Benefits
- Provides method of draining moisture within enclosures
- Allows air within enclosure to breathe with surrounding atmosphere
- Maintains Ex certification
- Maintains IP integrity
Specifications
Brand
Approvals & Certifications
- EAC
- INMETRO
- ATEX
- IECEx
Environmental Protection
- IP66
Materials of Construction
- 316 Stainless Steel
- Brass CZ121
- Electroless Nickel
- Zinc
O-Ring Material
- EPDM: -50° to 100° C
- Fluorosilicone: -60° to 130° C
- Neoprene: -40° to 80° C
- Nitrile: -30° to 80° C
- Silicone: -60° to 180° C
- Viton: -20° to 80° C
Threadforms
- NPT: 1/2", 3/4"
- Metric: M20, M25
Temperature Range
- Max 150° C
