Wilkerson F90 Series Particulate Filter, Port Size 3/4, 1; Flows to 170 SCFM
Images are representations only.

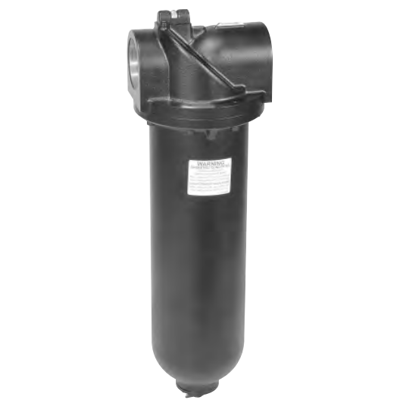

F90 Series Particulate Filter

Brand: Wilkerson Corporation
Request Information
Favorite

This filter offers integral 3/4" or 1" ports (NPT & BSPP) with a high efficiency particulate element. It provides excellent water removal efficiency, robust but lightweight aluminum construction and operates at low temperature -40° with combined manual / semi-auto drain as standard.

View Details

Specifications

Brand

Flow Capacity

  • 170 scfm (8 dm³/s)

Maximum Supply Pressure

  • 254 psig (17.5 bar)

Operating Temperature

  • 3/4” Combined manual / semi-Auto drain: -40° to 140° F (-40° to 60° C)
  • 3/4” Auto drain: 14° to 140° F (-10° to 60° C)
  • 1” Combined manual / semi-Auto drain: -40° to 140° F (-40° to 60° C)
  • 1” Auto drain: 14° to 140° F (-10° to 60° C)

Bowl Capacity

  • 130 cm³ (4.4 oz.)

Height x Width x Depth

  • 13.4 x 3.5 x 3.7 in (130 x 340 x 90 mm)

Weight

  • 3.5 lb (1.6 kg)
