BD Sensors Pressure Transmitter, DMP 343
Images are representations only.

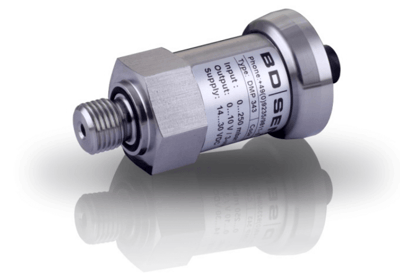

DMP 343 Pressure Transmitter

Brand: BD Sensors
Request Information
Favorite

The pressure transmitter DMP 343 has been especially designed for the measurement of very low gauge pressure and for vacuum applications.

Permissible media are gases, pressurized air and non-aggressive low viscous oils.

The DMP 343 features excellent thermal behavior and outstanding long term stability.

A variety of standard output signals as well as mechanical and electrical connections make the DMP343 covering a wide field of applications.
Features
  • Small thermal effect
  • Excellent long term stability
  • Excellent linearity

Specifications

Brand

Approvals & Certifications

  • CE
  • EMC: Emission & Immunity According to EN 61326, 2004/108/EC
  • IBExU 10-ATEX-1068 x for DX19-DMP333, 94/4/EG
  • IECEx IBE 12.0027X for DX19-DMP343
  • REACH
  • RoHS
  • TÜV NORD
  • UL (C,US)

BSP Connection

  • G 1/2” Male (DIN 3852, EN 837, ISO 4400)
  • G 1/4” Male (DIN 3852, EN 837)

Enclosure, Body Material

  • 316L Stainless Steel, 1.4401

Environmental Protection

  • IP65
  • IP67
  • IP68

NPT Connection

  • 1/2” NPT Male
  • 1/4” NPT Male

Output

  • 0-10 V, 3-Wire
  • 0-20 mA, 3-Wire
  • 4-20 mA, 2-Wire

Pressure Range

  • kPa: -100 to 100
  • mbar: -1,000 to 1,000
  • psi: -14.5 to 14.5

Pressure Type

  • Gauge

  • Mechanical and Plant Engineering
  • HVAC
