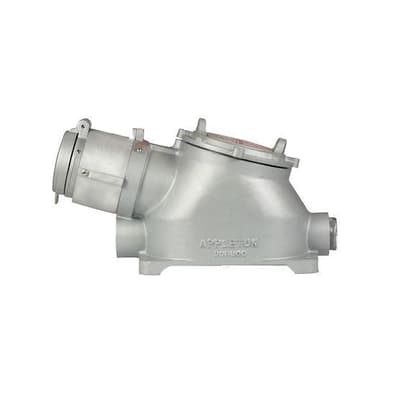

Appleton™ FSQC 30, 60 and 100 Amp Series Receptacles and Powertite™ Plugs
Brand: Appleton
FSQC 30, 60 and 100 Amp Series Receptacles incorporate an interlocked disconnect switch for added safety in hazardous environments.
The explosionproof and dust-ignitionproof FSQC is designed for use with Powertite™ plugs.
Simply insert the plug and rotate the receptacle face to the ON position to lock it in place and energize the receptacle.
For installations where different line voltages are used, a special polarization option prevents plug insertion into a receptacle wired for a different voltage.
Features- “Interlocked Disconnect Switch” provides safe connect and disconnect operation at 30, 60 or 100 Amp, 600 Vac maximum, three pole, non-fused motor circuit switch
- To operate, insert plug and turn receptacle face to ON position. To remove plug, turn to OFF position and pull plug out
- Style 2 (shell and extra pole) grounding
- Spring door keeps dust out of receptacle when plug is not in use. Screw cover also supplied
- Brass contacts exert constant pressure along entire contact surface and provide superior electrical contact
- Insulators provide superior dielectric and mechanical strength and lowest arc tracking
- Contacts have beryllium copper wire springs
- Tapped NPT conduit openings at top and bottom: 30 Amp 3/4", 60 Amp 1-1/2", 100 Amp 2"
- Large housing provides ample wiring room
- Powertite™ Series plug fits hazardous location FSQC receptacles
Specifications
Brand
Voltage
- 120 Vac, 240 Vac, 480 Vac or 600 Vac
Wire Range
- 100 A: #2-1/0
- 60 A: #6-#4
- 30 A: #10-#8
Mounting Box Entries
- Feed-Thru
Certifications & Approvals
- UL
- CSA
Materials & Finishes
- Insulating Blocks: Fiber Glass Reinforced Polyester
- Receptacles, Mounting Box: Copper-Free (4/10 of 1% Max.) Aluminum with Epoxy Powder Coat
Amperage
- 30, 60 or 100 A
Plug Cable Diameter
- 0.875" - 1.906”
- 0.390" - 1.375"
Number of Poles
- 4
Number of Wires
- 3
