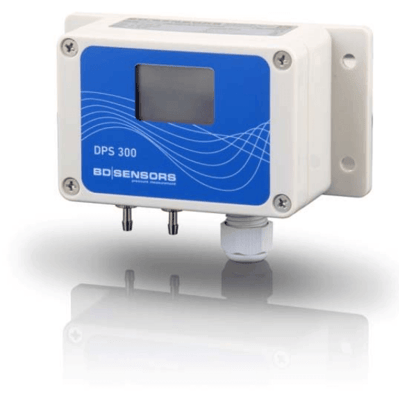

DPS 300 Differential Pressure Transmitter
Brand: BD SensorsThe pressure transmitter DPS 300 was developed for the differential pressure measuring for dry, non aggressive gases and compressed air and can be used for several HVAC applications.
The DPS 300 is a multi range transmitter with up to three adjustable ranges.
The device is equipped with a two-line LC display and can simply parameterized.
Features- Adjustable ranges
- High over pressure capability
- Adjustable damping
- Compact form
Specifications
Brand
Approvals & Certifications
- CE
- EMC: Emission & Immunity According to EN 61326, 2004/108/EG
- REACH
- RoHS
- TÜV NORD
Enclosure, Body Material
- ABS
Environmental Protection
- IP54
Output
- 0-10 V, 3-Wire
- 0-20 mA, 3-Wire
- 4-20 mA, 2-Wire
Pressure Range
- kPa: 0 to 101.4
- mbar: 0 to 1,000
- psi: 0 to 14.7
Pressure Type
- Differential
- Gauge
