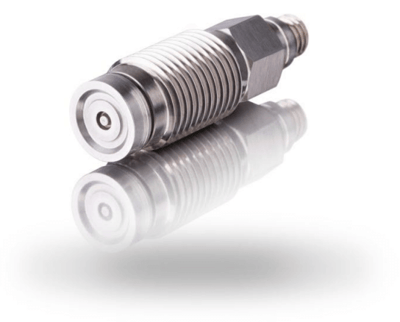

DAC 180 Piezoelectric Pressure Sensor
Brand: BD SensorsThe piezoelectric pressure sensor was developed for detecting dynamic pressure changes psi: 0 to 116,024 (kPa: 0 to 800,000, bar: 0 to 8,000) in hydraulic systems.
The unique GaPO₄ sensor element allows a sensitivity of 2.3 pC/bar.
It is therefore ideal for resolving small pressure fluctuations across the entire pressure range.
The front-sealing sensor in conjunction with the compression fitting is not influenced by either installation or installation position.
Features- High sensitivity
- Suitable for dynamic pressure changes psi: 0 to 116,024 (kPa: 0 to 800,000, bar: 0 to 8,000)
- Long service life and excellent long-term stability
Specifications
Brand
Approvals & Certifications
- TÜV NORD
Pressure Range
- bar: 0 to 8,000
- kPa: 0 to 800,000
- psi: 0 to 116,024
UNF/UNC Connection
- 10-32 UNF Male
