Wilkerson B08 Series Modular Filter/Regulator, Port Sizes 1/4; Flows to 73 SCFM
Images are representations only.

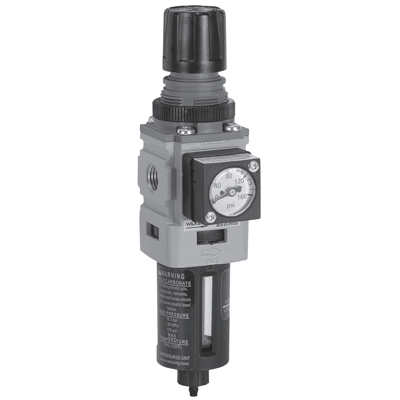

B08 Series Modular Filter/Regulator

Brand: Wilkerson Corporation
Request Information

Specifications
  • Excellent Water Removal Efficiency
  • Unbalanced Poppet Standard
  • Solid Control Piston for Extended Life
  • Space Saving Package offers both Filter and Regulator features in One Integral Unit
  • Non-rising Adjustment Knob
  • Two Full Flow 1/8" Gauge Ports

Specifications

Brand

Flow Capacity

  • 1/4": 73 scfm (35 dm³/s, ANR)

Maximum Supply Pressure

  • Plastic Bowl: 150 psig (10.3 bar)
  • Metal Bowl: 250 psig (17.2 bar)

Operating Temperature

  • Plastic Bowl: 14° to 125° F (-10° to 52° C)
  • Metal Bowl: 14° to 150° F (-10° to 65.5° C)

Port Size

  • NPT / BSPP-G: 1/4

Bowl Capacity

  • 0.4 oz.

Gauge Ports

  • NPT: 1/8

Standard Filtration

  • 5 micron

Weight

  • 0.42 lb (0.19 kg)
