Series 6500 Instrument Connection Valve

Brand: Cameron
Request Information
Favorite

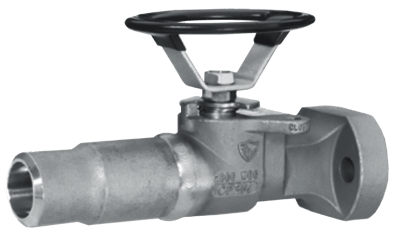

The Series 6500 valve features welded tamper-proof construction, internal entry blowout-proof stem and an oval safety handle with a lock-out device to prevent accidental operation.

The unique design of the series 6500 valve incorporates backup metal fire lips to provide sealing if the soft meets the stringent requirements of API 607.

The series 6500 valve offers reliability, safety, visibility, unique mounting capability, quality and unsurpassed leakage protection.
Features
  • Various end connections available
  • Internal entry blowout-proof stem
  • High-strength forged or investment cast body
  • Oval safety handles
  • Welded tamper-proof construction

View Details

Specifications

Brand

Applications

  • Isolation Valve
  • Root Valve

Approvals & Certifications

  • API 607 (Fire-Tested for Soft-Seated Valves)
  • MSS-SP-99 (Instrumentation Valves)

Approvals & Certifications

  • CE
  • ISO 15156-1
  • TÜV (Technischer Uberwachungsverein)

Ball Material

  • 304 Stainless Steel
  • 304L Stainless Steel
  • 316 Stainless Steel
  • 316L Stainless Steel
  • 317 Stainless Steel
  • Alloy 20 or Incoloy
  • Carbon Steel
  • Hastelloy C
  • Monel K500
  • Monel 12 400
  • Titanium Grade 2, 5, 7
  • Zirconium

Bearing Material

  • 15% Glass-Filled PTFE - Thrust Bearing

Enclosure, Body Material

  • 304 Stainless Steel
  • 304L Stainless Steel
  • 316 Stainless Steel
  • 316L Stainless Steel
  • 317 Stainless Steel
  • Alloy 20 or Incoloy
  • Carbon Steel
  • Hastelloy C
  • Monel K500
  • Monel 12 400
  • Titanium Grade 2, 5, 7
  • Zirconium

Flange Size - 1” (DN 25)

  • 1” (DN 25) - 150# ASME
  • 1” (DN 25) - 300# ASME
  • 1” (DN 25) - 600# ASME
  • 1” (DN 25) - 900# ASME

Flange Size - 1/2” (DN 15)

  • 1/2” (DN 15) - 150# ASME
  • 1/2” (DN 15) - 300# ASME
  • 1/2” (DN 15) - 600# ASME
  • 1/2” (DN 15) - 900# ASME

Flange Size - 3/4” (DN 20)

  • 3/4” (DN 20) - 150# ASME
  • 3/4” (DN 20) - 300# ASME
  • 3/4” (DN 20) - 600# ASME
  • 3/4” (DN 20) - 900# ASME

Flow Capacity

  • 33 Cv - for 1” Size
  • 8 Cv - for 1/2” & 3/4” Sizes

Handle Assembly Material

  • Carbon Steel-Plated

Materials of Construction

  • 400 Stainless Steel - Lock Washer
  • 7 Stainless Steel - Belleville Washer
  • Carbon Steel-Plated - Stop

NACE & NIST

  • NACE MR-0175

NPT Connection

  • 1” NPT Female
  • 1” NPT Male
  • 1/2” NPT Female
  • 1/2” NPT Male
  • 1/4” NPT Female
  • 1/4” NPT Male
  • 3/4” NPT Female
  • 3/4” NPT Male
  • 3/8” NPT Female
  • 3/8” NPT Male

Nut & Bolt Material

  • Stem Nut: 300 Stainless Steel

Pressure Rating

  • psi: 2,000 (kPa: 13,790, bar: 137.9) - WOG Rating

Seat / Seal Material

  • 15 % Glass-Filled PTFE
  • Graphite
  • Seat: Cryofil
  • Seat: CTFE
  • Seat: Delrin AF
  • Seat: Grafoil
  • Seat: Metal
  • Seat: Thermafil
  • Seat: UHMWPE
  • Seat: Ultrafil 25
  • Virgin PTFE

Size

  • Valve: 1” (DN 25)
  • Valve: 1/2” (DN 15)
  • Valve: 3/4” (DN 20)

Stem Material

  • 304 Stainless Steel
  • 304L Stainless Steel
  • 316 Stainless Steel
  • 316L Stainless Steel
  • 317 Stainless Steel
  • Alloy 20 or Incoloy
  • Carbon Steel
  • Hastelloy C
  • Monel K500
  • Monel 12 400
  • Titanium Grade 2, 5, 7
  • Zirconium

Torque

  • 30 to 300 In/Lbs, Max.

Welded Connection

  • 1” Butt Weld End
  • 1” Socket Weld End
  • 1/2” Butt Weld End
  • 1/2” Socket Weld End
  • 3/4” Butt Weld End
  • 3/4” Socket Weld End
