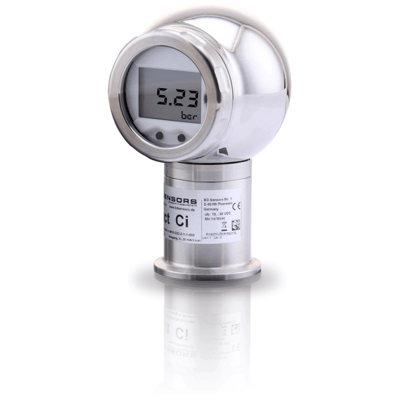

x|act ci Pressure Transmitter

Brand: BD Sensors

The precise pressure transmitter x|act ci measures the pressure of gases, steam and fluids.

The special-developed capacitive ceramic sensor for this transmitter, which can optionally be delivered in pure ceramic, has a high overpressure capability and excellent media stability.

Several process connections example inch thread or hygienic versions like Varivent, dairy pipe or Clamp are available.

The robust stainless steel globe housing has a high ingress protection IP67 and all characteristics for a residue-free and antibacterial cleaning.
Features
  • Turn-down 1:5
  • With integrated display and operating module
  • Diaphragm ceramics Al2O3 (99.9 %)
  • Flush mounted, capacitive ceramic sensor
  • Hygienic version
  • Several process connections (inch thread, Clamp, etc.)

Specifications

Approvals & Certifications

  • CE-Conformity
  • EMC: Emission & Immunity According to EN 61326, 2004/108/EC
  • IBExU05-ATEX-1106 x for AX12-x/act Ci
  • IEC 60770
  • TÜV NORD

BSP Connection

  • G 1-1/2”

Diaphragm Material

  • Ceramic

Enclosure, Body Material

  • 304 Stainless Steel

Environmental Protection

  • IP67

Flange Size - 1” (DN 25)

  • 1” (DN 25) - PN 40

Flange Size - 2” (DN 50)

  • 2” (DN 50) - PN 40

Flange Size - 3” (DN 80)

  • 3” (DN 80) - PN 16

Output

  • 4-20 mA, 2-Wire

Pipe Connection

  • 1-1/2” Pipe (DN 40)
  • 2” Pipe (DN 50)

Pressure Range

  • bar: 0.06 to 20
  • kPa: 6 to 2,000
  • psi: 0.87 to 290.1

Pressure Type

  • Gauge
  • Vacuum

Tri-Clamp Connection

  • 1-1/2” Tri-Clamp (DN 32)
  • 2” Tri-Clamp (DN 50)
