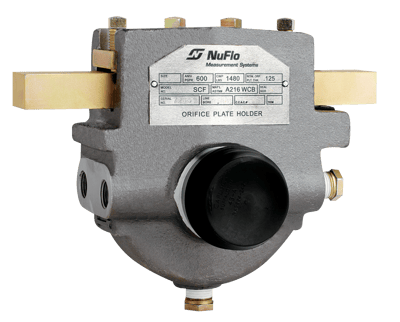

NUFLO Model 5030 Single Chamber Orifice Fitting

With the increasing measurement accuracy achievable with today’s flow computers, the importance of accuracy in primary measurement equipment like orifice plates has reached a new level of emphasis.

Frequent inspection of orifice plates is necessary to ensure the plates are in a condition that will ensure a high level of measurement accuracy.

Cameron’s NUFLO Model 5030 orifice fitting reduces the time and cost of inspecting and changing orifice plates, and helps ensure that the bore is properly centered in the meter tube.

The single-chamber design makes installing and removing the orifice plate quick and easy by combining the orifice carrier and sealing bar in one assembly.

By removing four bolts and a clamping bar, the user can pull the assembly from the fitting, replace the orifice plate and reinsert the assembly into the fitting in a matter of minutes.

Additionally, with no flange bolts to remove and no flanges to spread, the risk of fluid loss from the pipeline is eliminated.
