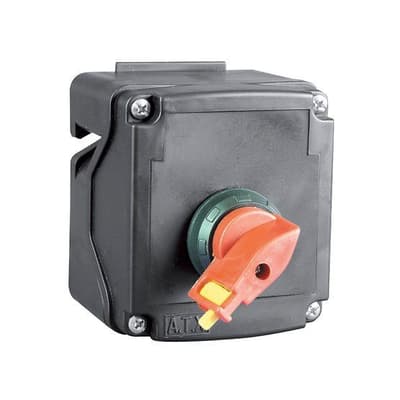

Appleton™ ATX™ SWE Series 16 and 20 Amp Control Devices
Brand: AppletonAppleton™ increased safety ATX™ SWE Series 16 and 20 Amp switches, circuit breakers, and "break glass" call points are designed to prevent operation in explosive atmospheres during connect and disconnect operation of lighting and light power loads.
They are ideal for use in hazardous areas where ignitable vapors, gases or highly combustible dusts are present.
Features- Increased Safety. Ideal for installation in chemical and petrochemical plants, refineries and other process industries
- Available up to 690 Volts, and up to 20 Amp
- 16 Amp version has two bottom M20 clearance holes. The switch mechanism is fixed at the bottom of the box
- 16 Amp version is supplied with 1 x white self-adhesive laminated plastic label with black lettering, 58 mm x 18 mm (2.28" x 0.71")
- 20 Amp version has two M20 threaded entries on the bottom of the box. The switch mechanism is fixed on the bottom of the box
- 20 Amp version has a padlockable handle in position 0 using maximum 4 padlocks. The maximum handle diameter is 8 mm (0.315") and minimum 15 mm (0.59") length
- 20 Amp is supplied with 1 x yellow self-adhesive laminated plastic label with black lettering; 65 mm x 18 mm (2.56" x 0.71")
Specifications
Brand
Ambient Temperature
- 20° to +40° C (-4° to +104° F)
Approvals & Certifications
- ATEX
- EURASEC
- INMETRO
Standard Materials
- Screws: A2 Stainless Steel
- Locknuts: Nickel-Plated Brass
- Box & Cable Glands: Polyamide
